NADIR
Shapes, paths and trails in real time
NADIR draws a shape that travels along a path, leaves a trail that warps and fades, composes it over a background video and sends it through Syphon, with and without the video, and as data for MadMapper's laser. It is played live with a MIDI controller, just like MadMapper.
It was born from Summoning's laser shaders. It is in closed beta and the current version is 0.2.
- Status
- Closed beta
- Version
- 0.2, October 17, 2026
- Requires
- Mac with Apple Silicon
- License
- Personal key for one Mac, non-commercial use

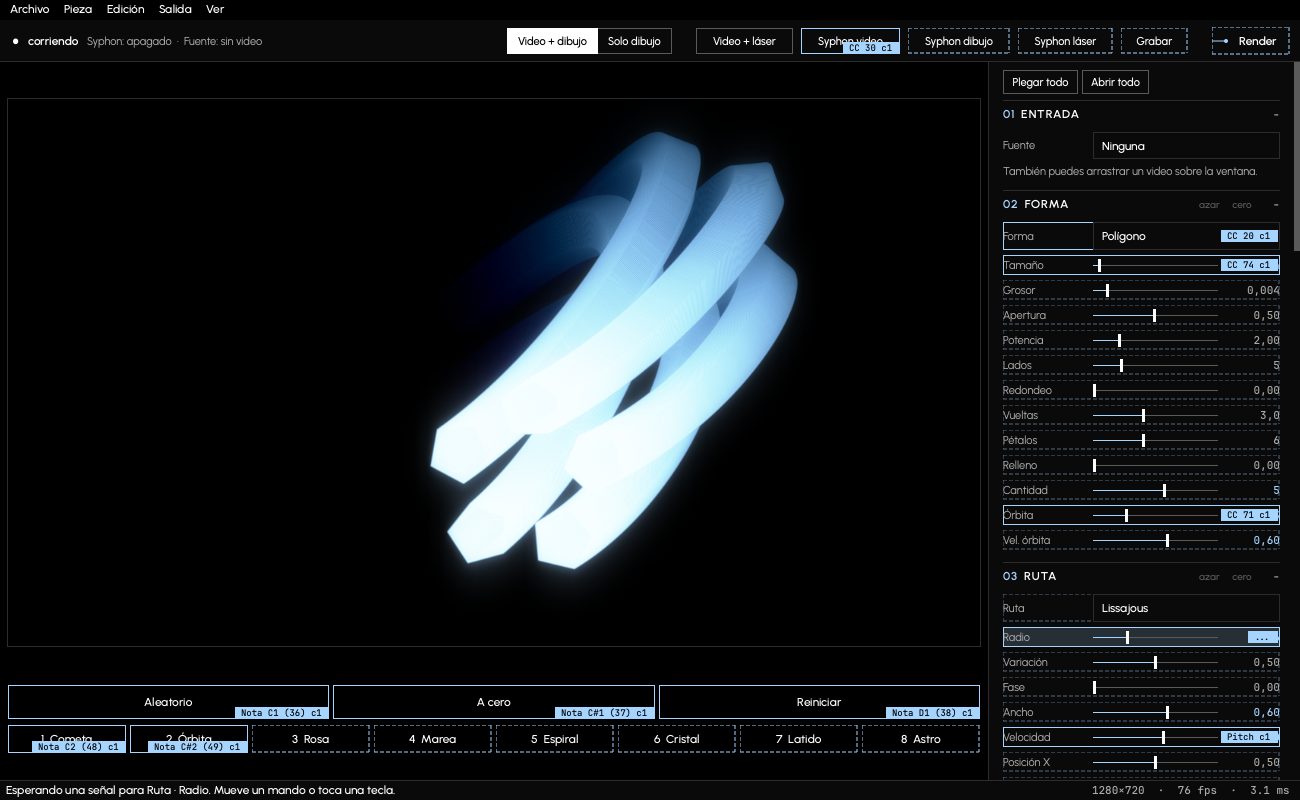

The interface
One dark window. What is on shows inverted, what is dangerous shows in red, and values moved away from zero show in blue.
- 01Status and outputs. The dot says whether it runs. LIVE and REC are red chips.
- 02Bar. Video + drawing or Drawing only for the view, the three Syphon outputs, Record and Render.
- 03View. The same as the Syphon output. A click or a drag moves the shape.
- 04Random, Zero and Reset. Three separate buttons, with Space, 0 and R.
- 05Scenes. Eight, with keys 1 to 8. Shift and click saves the current piece.
- 06Sections. Collapsible, each with its own random and zero.
- 07Controls. Sliders, options and switches. Double click on the name returns to zero.
- 08Output and MIDI. At the end of the column, with render, laser and assignments.

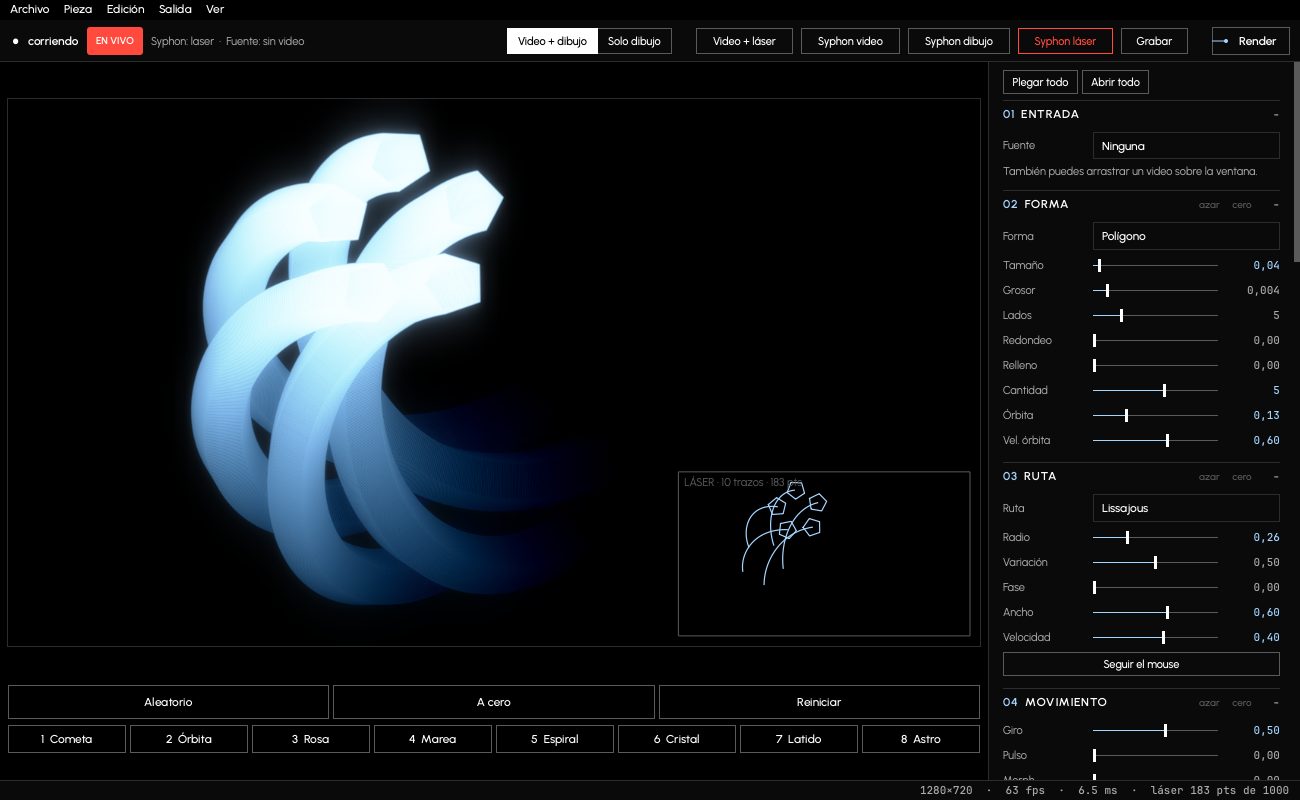

- 09Laser monitor. With Syphon laser on it appears bottom right, with what goes to the galvo.
- 10Status bar. Resolution, fps, milliseconds per frame and laser points.
Specs
- Platform
- macOS on Apple Silicon
- Engine
- GPU drawing at 60 frames per second. 1280×720 by default, 1080p readback and render up to 4K
- Shapes
- Thirteen. Point, circle, triangle, square, pentagon, arc, segment, eye, superellipse, polygon, spiral, rose and lemniscate
- Paths
- Fourteen. Circle, Lissajous, linear, manual, eight, rose, spiro, spiral, pendulum, bounce, drift, square, heart and cardioid
- Trail
- Length, decay, width and brightness. Five warps, Expand, Contract, Spin, Drift and Turbulence, plus Flow with the background video
- Parameters
- 52 in collapsible sections, with random and zero per section, and eight scenes
- Outputs
- Video Syphon, drawing Syphon with alpha and laser Syphon for MadMapper's NadirLaser material. Video + laser with the same frame number
- Laser
- Up to 1,000 points per frame
- MIDI
- 68 targets. Assigned with Cmd+Shift+M, as in MadMapper, and the app offers its own port
- Record and render
- H.264, ProRes 422 HQ and ProRes 4444 with alpha. 124 frames per second at 1080p in H.264 and 16 at 4K in ProRes 4444, on an M1 Max
- License
- Closed beta. Personal key for one Mac, non-commercial use

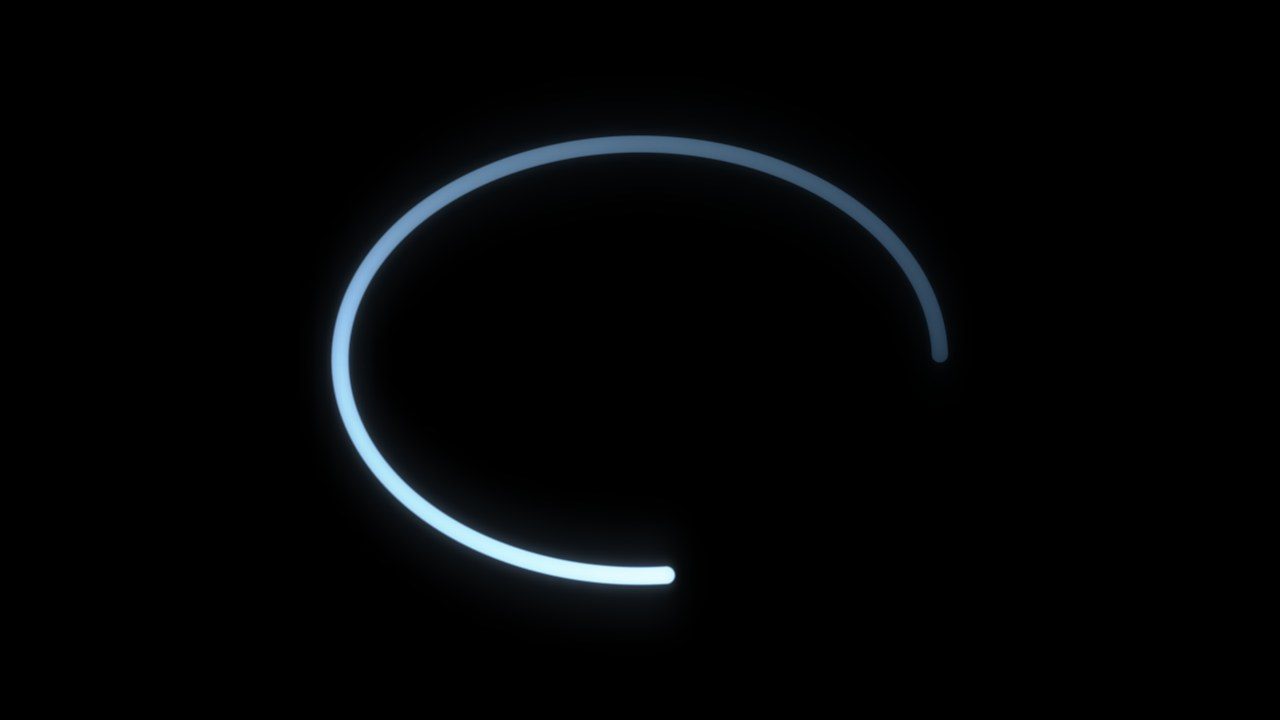

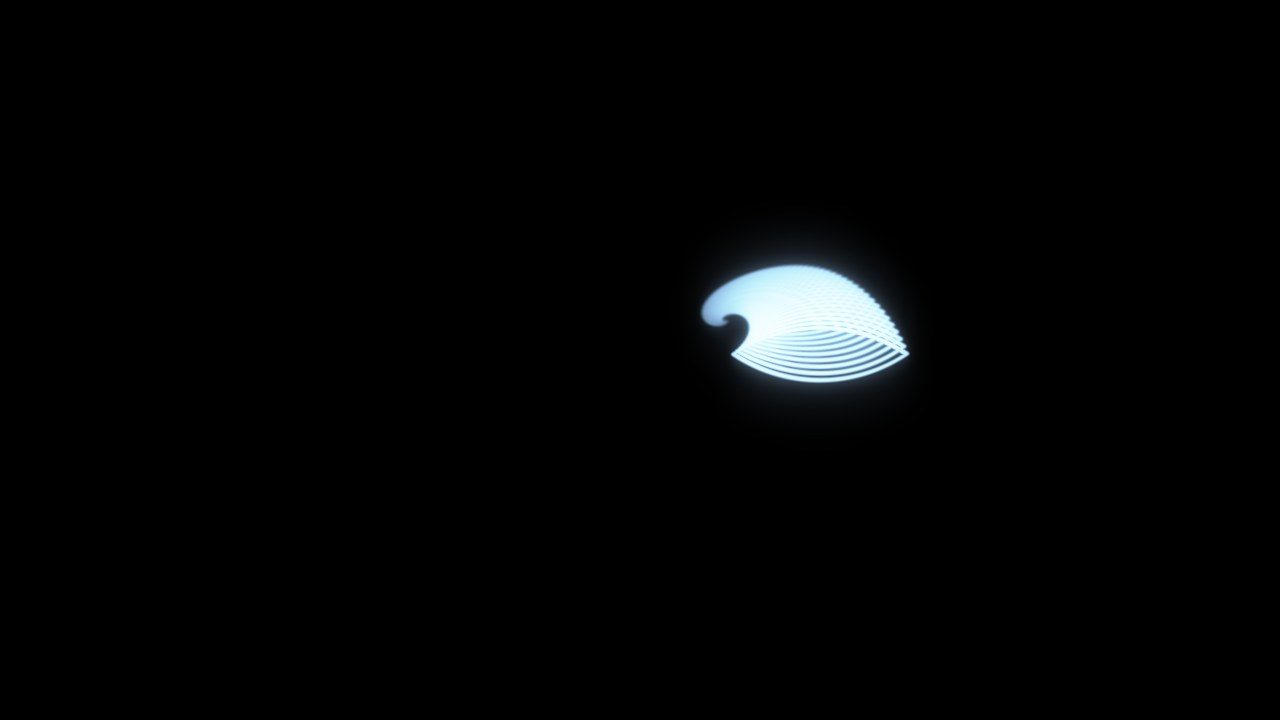

What comes out
Beta access
VOID and NADIR are tested in closed beta, by invitation. Leave your email and tick the one you want. We write back to hear what you would do with it. AXIS news go to the same list.
